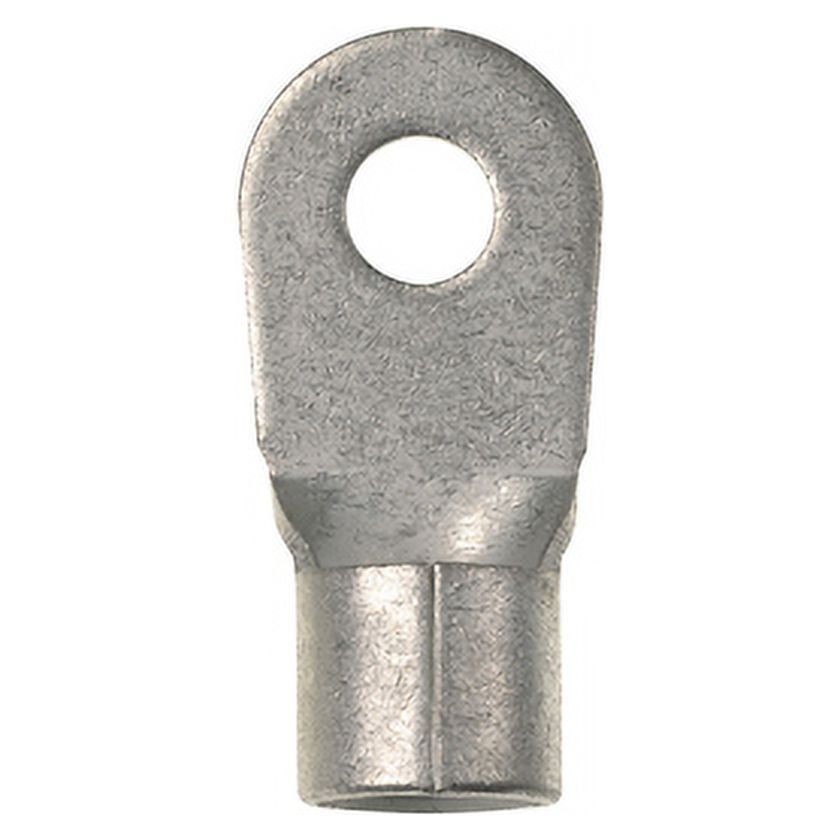

Ring Terminal, 1/4 in Stud Size, 6 AWG, 2,000 V, Bare Insulated, Bare, Crimp Termination Only

Ring Terminal, Insulation Color Bare, Insulation Coverage None, Insulation Material None, Maximum Operating Temperature 302 Degrees F, Maximum Voltage 2,000 V, Minimum Wire Size 6 AWG, Maximum Wire Size 6 AWG, Termination Style Crimp, Tongue Width 0.47 in, Contact Finish Tin, Contact Material Copper, Standards CSA C22.2 No. 65, UL 486A, UL 486B, Barrel Inside Diameter 0.23 in, Barrel Outside Diameter 0.23 in, Barrel Size Standard, Barrel Style Brazed Serrated

• Compatible Manufacturer Model Number:CT-1701, CT-2600
• Environmentally Friendly:Yes
• Features:Brazed Seam
• Finish/Coating:Tin-Plated
• For Use With:CT-1701, CT-2600 (CD-2600-P6)
• Green Environmental Attribute:Does Not Contain PVC
• Maximum Operating Temperature (°C):150
• Maximum Operating Temperature (°F):302
• Maximum Operating Temperature (°C):150
• Maximum Operating Temperature (°F
• Maximum Operating Temperature:302 Degrees F
• Maximum Voltage (V):2000
• Maximum Voltage:2,000 V
• Maximum Wire Size (AWG):#6
• Maximum Wire Size:6 AWG
• Minimum Copper Conductor Size (AWG):#6
• Minimum Operating Temperature:302 Degrees F
• Minimum Wire Size (AWG):#6
• Minimum Wire Size:6 AWG
• Standards Met:cULus Listed 587H E52164, CSA Certified LR31212
• Standards:CSA C22.2 No. 65, CSA LR31212, cULus Listed 587H E52164, UL 486A, UL 486B
• Strip Length:1/2 in
• Stud Hole Size (In.):1/4"
• Stud Hole Size (mm):6
• Stud Size:1/4 in
• Sub Brand:Pan-Term
• Terminal Connection:Crimp
• Terminal Shape:Ring
• Terminal Type:Ring Tongue
• Termination Style:Crimp Termination Only
